Item
|
Details
|
|
Model
|

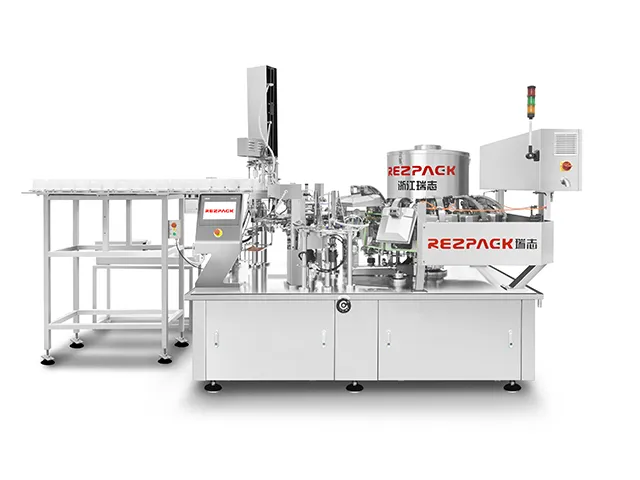

RZ10 - 160E - 12ZK
|
|
Applicable Bag Types
|

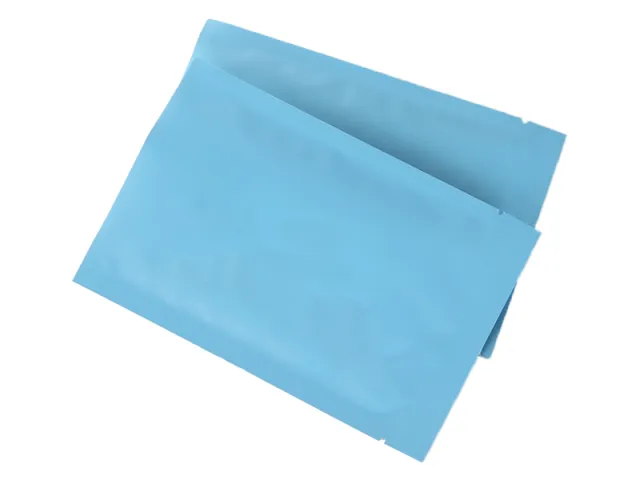

Four - side sealed flat bags
|
|
Bag Size
|
Width: 70 - 160 mm; Length: 100 - 210 mm; Thickness ≤ 50 mm
|
|
Filling Weight
|
≤ 400 g
|
|
Packaging Speed
|
≤ 80 bags/min (depending on product packaging conditions)
|
|
Station Process
|
Main machine (10 stations): 1. Bag loading 2. Idle 3. Bag opening 4. Feeding 5. Reserved 6. Reserved 7. Idle 8. Bag - full detection 9. Bag transferring 10. Idle Vacuum (12 stations): 1 - 2. Bag receiving 2 - 3. Cover closing 3 - 4. Semi - vacuum 4 - 5. Vacuum 1 5 - 6. Vacuum 2 6 - 7. Pressure maintaining 7 - 8. Pressure maintaining 8 - 9. Heat sealing 9 - 10. Cooling 10 - 11. Semi - vacuum 11 - 12. Vacuum breaking 11 - 12. Cover opening bag dropping 12. Full cover opening
|
|
Weight
|
2600 kg
|
|
Overall Dimensions (LWH)
|
2600 mm * 1900 mm * 1800 mm (length x width x height, excluding finished product output)
|
|
Total Power
|
7.37 kw (excluding vacuum pump)
|
|
Driving Power Supply
|
380 V, three - phase five - wire, 50 Hz (other power supplies can be customized)
|
|
Air Consumption
|
≥ 0.4 m³/min (compressed air provided by the customer)
|
|
Serial Number
|
Name
|
Brand
|
Place of Origin
|
|
1
|
PLC
|
Inovance
|
China
|
|
2
|
Touch Screen
|
Inovance
|
China
|
|
3
|
Inverter
|
Inovance
|
China
|
|
4
|
Main Motor
|
Kone
|
China
|
|
5
|
Proximity Switch
|
SICK
|
Germany
|
|
6
|
Vacuum Pump
|
Zhongde
|
China
|
|
7
|
Solenoid Valve
|
SMC
|
Japan
|
|
8
|
Cylinder
|
SMC/Airtac
|
Japan/Taiwan, China
|
