Item
|
Details
|
|
Model
|

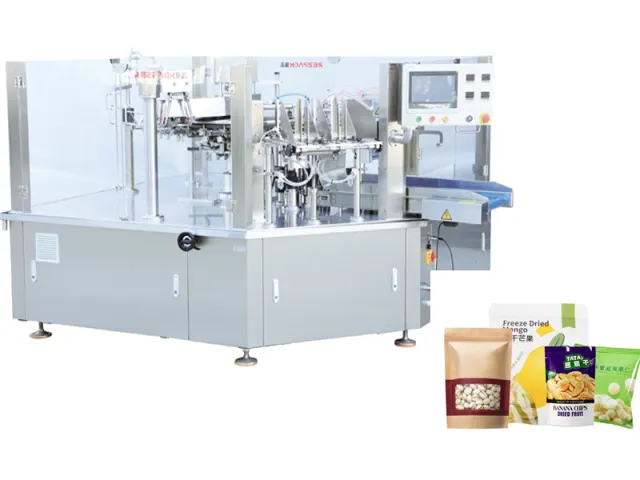

RZ9 - S150
|
|
Applicable Bag Types
|
Flat bags, back - sealed bags, self - standing bags
|
|
Station Process
|
Nine stations: 1. Bag loading 2. Reservation 3. Bag opening 4. Feeding 5. Reservation 6. Rotary blowing 7. Reservation 8. Heat sealing 9. Shaping Finished product output
|
|
Bag Size
|
Width: 60 - 150 mm; Length: 150 - 330 mm
|
|
Filling Weight
|
≤ 1000 g
|
|
Packaging Speed
|
≤ 100 bags/min (depending on product packaging conditions)
|
|
Machine Weight
|
Approximately 3500 kg
|
|
Overall Dimensions (LWH)
|
2340 mm * 2680 mm * 1550 mm (Length x Width x Height), including screen and handwheel
|
|
Total Power
|
5.41 kw (Two heat sealings, excluding vacuum pump)
|
|
Driving Power Supply
|
380 V, three - phase five - wire, 50 Hz (Other power supplies can be customized)
|
|
Air Consumption
|
≥ 0.8 m³/min (Compressed air is provided by the customer)
|
|
Serial Number
|
Name
|
Brand
|
Origin
|
|
1
|
PLC
|
Inovance
|
China
|
|
2
|
Touch Screen
|
Inovance
|
China
|
|
3
|
Frequency Inverter
|
Inovance
|
China
|
|
4
|
Main Motor
|
Inovance
|
China
|
|
5
|
Proximity Switch
|
SICK
|
Germany
|
|
6
|
Vacuum Pump
|
Jiuxin
|
China
|
|
7
|
Solenoid Valve
|
FESTO
|
Germany
|
|
8
|
Cylinder
|
SMC/AIRTAC
|
Japan/China Taiwan
|
 |
 |
 |
 |
 |
 |
