Item
|
Details
|
|
Model
|

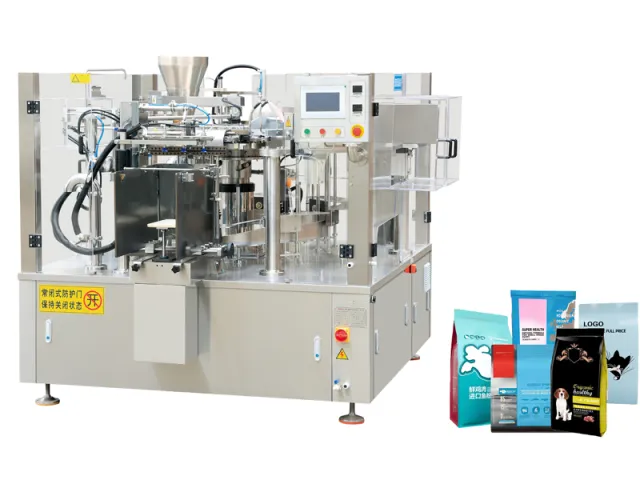

RZ8 - 400E
|
|
Applicable Bag Types
|

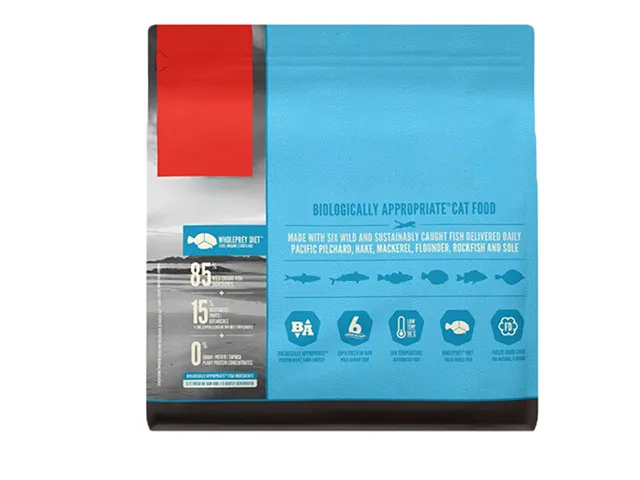

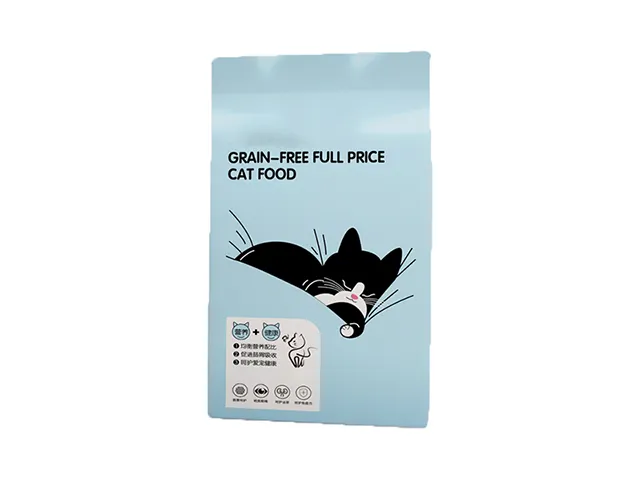

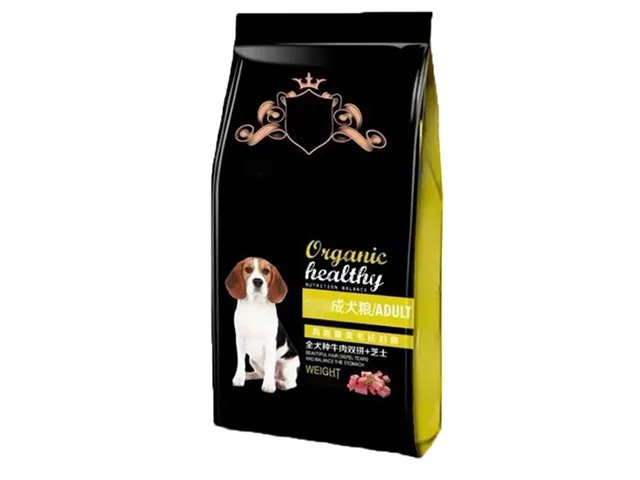

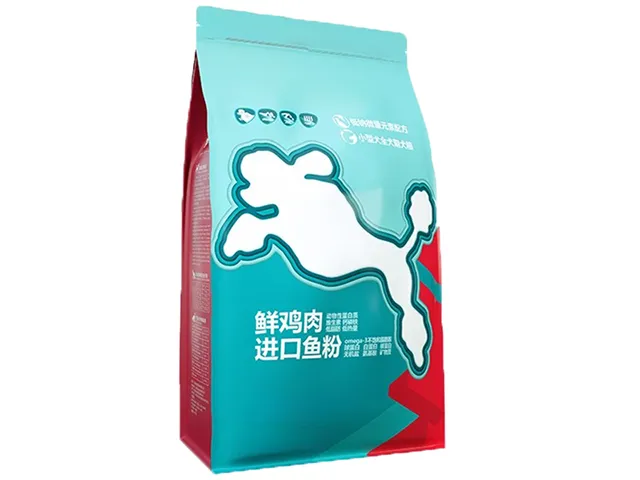

Flat bags, back - sealed bags, self - standing bags, zipper bags
|
|
Station Process
|
Eight stations: 1. Bag loading 2. Reservation 3. Bag opening 4. Feeding 5. Reservation 6. Reservation 7. Heat sealing 8. Shaping Finished product output
|
|
Bag Size
|
W: 240 - 400 mm; L: 150 - 600 mm
|
|
Filling Weight
|
≤ 5000 g
|
|
Packaging Speed
|
≤ 30 bags/min (depending on product packaging conditions)
|
|
Weight
|
2500 kg
|
|
Overall Dimensions (LWH)
|
2150 mm * 2020 mm * 1700 mm (Length x Width x Height), including screen and handwheel
|
|
Total Power
|
3.62 kw (Two heat sealings, excluding vacuum pump)
|
|
Driving Power
|
380 V, three - phase five - wire, 50 Hz (Other power supplies can be customized)
|
|
Air Consumption
|
≥ 0.4 m³/min (Compressed air is provided by the customer)
|
|
Serial Number
|
Name
|
Brand
|
Origin
|
|
1
|
PLC
|
Inovance
|
China
|
|
2
|
Touch Screen
|
Inovance
|
China
|
|
3
|
Frequency Inverter
|
Inovance
|
China
|
|
4
|
Main Motor
|
Inovance
|
China
|
|
5
|
Proximity Switch
|
SICK
|
Germany
|
|
6
|
Vacuum Pump
|
ORION
|
Japan
|
|
7
|
Solenoid Valve
|
SMC
|
Japan
|
|
8
|
Cylinder
|
SMC/AIRTAC
|
Japan/China Taiwan
|
 |
 |
 |
 |
